Anekal, Bangalore, Karnataka
Business Type | Manufacturer, Exporter, Supplier |
Material | PP |
Color | As per requirement |
Condition | New |
Click to view more |
Preferred Buyer From
Location | Worldwide |
Product Details
Product information

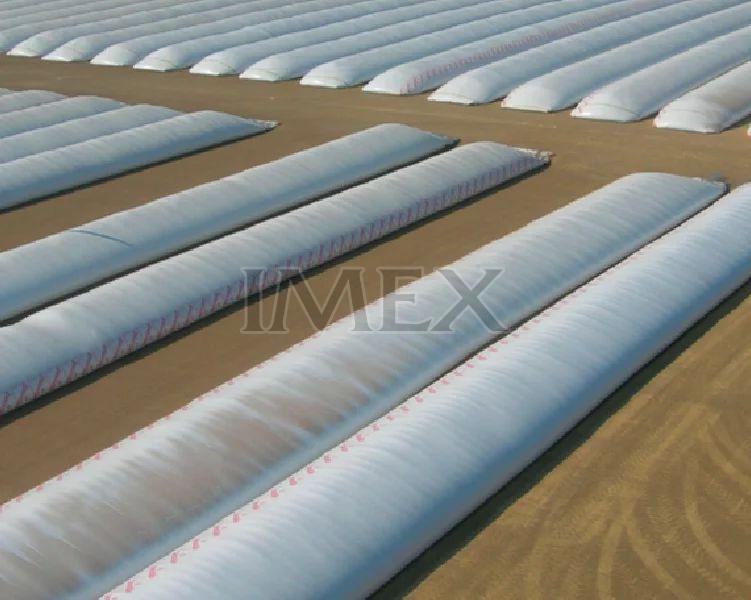

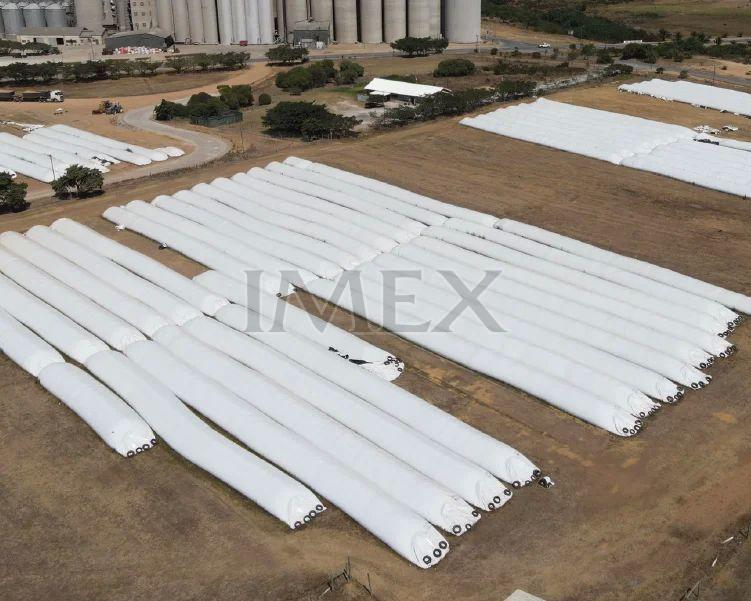

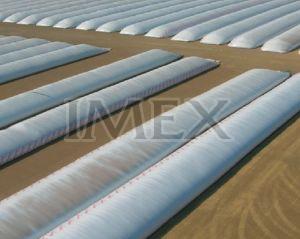

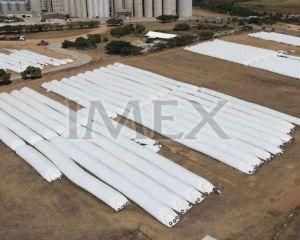

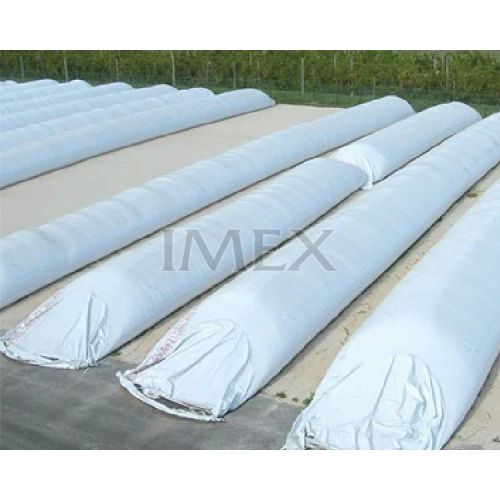

Silo Bag proudly introduces a new system which stores the grains and forages in a safe, economical and profitable way. Our bags are designed to achieve the optimal preservation of grains either at the harvest site or a dedicated storage site The bagging process is done by means of a high performance, low cost and easily transportable machine
Next Generation of Silo Bags
Our Silo Bags are made of a seven-layers of Blown extruded technology with various polymers to achieve the best quality Silo Bags (Polyethylene) about 125-500 microns, with anti-slip and antistatic properties. We can also produce flame retardant silo bags.
The outer layer is white with UV protective coating while the inner layer in contact with the grain is black. The diameter of 5-18 feet and to any length of 200 meters and above. Customisation is our speciality. Every Bag is folded with an automatic folding machine.
Applications
Specifications
Three or five or seven co-extruded layers of polyethylene plastic film UV protected.
Sizes:
Capacity ranges from 180-250 tons or higher (for dry products)
Advantages
Retains original quality and quantity of the products
Ideal for long term storage
Protects the goods from adverse climatic conditions during transit.
Lower investment costs and Annual costs
Perfect sealing and anaerobic conditions expel insects and fungus growth within the bag.
Specifications
Sl.No. | Specifaication | Units | Standard |
1 | Width | mm | In house |
2 | Thicknes | micron | In house |
GSM | 180 - 240 | ||
3 | Tensile Strength - MD | kg / cm 2 | ASTM D882 |
4 | Tensile Strength - TD | kg / cm 2 | ASTM D882 |
5 | Elongation MD | % | ASTM D882 |
6 | Elongation TD | % | ASTM D882 |
7 | Dart Impact Method - B | grams | ASTM D1709 |
8 | COF - Static | ASTM D1894 | |
9 | COF - Static | ASTM D1894 | |
10 | WVTR | gm / ms 2 / day | ASTM F1249 |
Bag Capacity Chart
HEY SILAGE | CORN SILAGE | EAR CORN | GROUND SHELLED CORN | SHELLED CORN | GRAIN | |
Bag Size | Tons | Tons | Bushels | Bushels | Bushels | Bushels |
8 x 150 | 120 -140 | 140 -150 | 3200 | 4500 | 4500 | 4600 |
8 x 200 | 170 -180 | 190 -200 | 4300 | 6200 | 6200 | 6350 |
9 x 150 | 150 -170 | 160 -190 | 3900 | 5500 | 5500 | 5650 |
9 x 200 | 190 -210 | 220 -240 | 5300 | 7500 | 7500 | 7680 |
9 x 250 | 260 -280 | 280 -300 | 6600 | 9500 | 9500 | 9730 |
9 x 300 | 315 -335 | 340 -360 | 8000 | 11500 | 11500 | 11780 |
10 x 200 | 280 | 300 | 6100 | 8700 | 8700 | 8900 |
10 x 250 | 355 | 380 | 7700 | 11000 | 11000 | 11275 |
10 x 300 | 430 | 460 | 9400 | 13400 | 13400 | 13730 |
10 x 400 | 580 | 620 | 12700 | 18100 | 18100 | 18550 |
10 x 500 | 730 | 780 | 16000 | 22800 | 22800 | 23370 |
11 x 300 | 480 | 510 | NA | NA | NA | NA |
12 x 300 | 570 | 630 | 11500 - 13950 | 16530 - 19950 | 16530 - 19950 | 16530 - 19950 |
12 x 500 | 970 | 1070 | 19650 - 23800 | 28100 - 33950 | 28100 - 33950 | 28100 - 33950 |
14 x 500 | 1300 | 1360 | NA | NA | NA | NA |
